vps使用rclone挂载Google Drive详细记录

其实 rclone 挂载 Google Drive 网上的教程已经很多了,但是大多数的教程都有一点点过时,与现在的实际操作有一点出入,故整理了当前的挂载操作,以防忘记。

一、 安装并配置rclone

首先在vps上一键安装rclone:

curl https://rclone.org/install.sh | sudo bash

接下来在本地电脑上下载命令行操作的rclone:

访问rclone下载地址,选择您的操作系统下载相应的zip包并解压。一会需要用得着。

软件准备好中,在vps上开始配置,执行:

rclone config

您应该会看见

2022/05/28 08:56:05 NOTICE: Config file "/root/.config/rclone/rclone.conf" not found - using defaults
No remotes found, make a new one?
n) New remote
s) Set configuration password
q) Quit config

选择n,新建配置:

此时rclone会要你选择要挂载什么网盘,找到google drive并选择。

注意是 google drive,不是 google cloud 或 google photos。

选择后rclone会要求输入api token,如果留空会使用rclone默认的api,但是据官方说明官方的目前使用人数过多,由于google本身的限制可能会出现需要等待时间过长的问题,因此推荐自己去申请一个api。

非常推荐使用自己的API,可以大幅提升稳定性。

申请api并不复杂,也不一定要是需要被挂载的google账户操作,随意一个正常的google账户就可以。下面是申请的简单步骤:

  1. 首先登录到Google API console,创建一个应用,点击“启用API和服务”,找到Google Drive并启用
启用Google Drive API

2. 点击OAuth同意屏幕,用户类型选择外部,应用名称随便填写,比如“rclone”就可以。用户支持电子邮件和开发者联系邮箱都填写您自己的就可以,点击保存并继续,剩下的参数都是用默认就可以了。

3. 点击凭据,屏幕上方点击创建凭据,选择OAuth 客户端ID

创建凭据选择

应用类型选择桌面应用。

应用类型选择

名称随便填,点击创建。创建后会向您提供您的客户端ID 和客户端密码,务必记下这些数据,并且填写到rclone中。

最后选择OAuth同意屏幕,选择发布应用。此时应该能看到发布状态变为了正式版。

发布状态

至此Google API就申请完成了,继续返回到rclone中进行配置。

填写Google API后,应该会看到如下显示:

Scope that rclone should use when requesting access from drive.
Choose a number from below, or type in your own value.
Press Enter to leave empty.
 1 / Full access all files, excluding Application Data Folder.
   \ (drive)
 2 / Read-only access to file metadata and file contents.
   \ (drive.readonly)
   / Access to files created by rclone only.
 3 | These are visible in the drive website.
   | File authorization is revoked when the user deauthorizes the app.
   \ (drive.file)
   / Allows read and write access to the Application Data folder.
 4 | This is not visible in the drive website.
   \ (drive.appfolder)
   / Allows read-only access to file metadata but
 5 | does not allow any access to read or download file content.
   \ (drive.metadata.readonly)

这个可以根据需求选择,比如我要完整的访问权限,就选择1。

接下来

root_folder_id 为空,service_account_file 也为空,直接回车即可。

Edit advanced config 输入 n,不需要进行额外的高级配置。

Use auto config 因为是要在vps上挂载,vps没有桌面环境,因此必须选择 n,进行远程配置。

选择后会看见如下显示:

Option config_token.
For this to work, you will need rclone available on a machine that has
a web browser available.
For more help and alternate methods see: https://rclone.org/remote_setup/
Execute the following on the machine with the web browser (same rclone
version recommended):
        rclone authorize "drive" "Your Token Code"
Then paste the result.
Enter a value.

注意,接下来要在本地执行,前面下载在本地的rclone压缩包解压后,你应该能看到一个rclone.exe,类似下图

rclone解压后

打开终端,进入到此目录后执行rclone authorize “drive”这一行。

如果不出意外,会自动打开浏览器进入到谷歌账号登录界面,此时一定要登录被挂载的谷歌账号,并选择同意授权。由于是新申请的API,没有经过的谷歌的验证,所以谷歌会提醒该应用未经验证。但是左下角有一行小灰字,点击选择继续就能授权。

授权成功浏览器会提示success:

授权成功

此时返回命令行,等待几秒就能看见授权的code了。

获取授权code

复制授权code,输入到rclone中。

接下来rclone会询问是否为团队盘:

Configure this as a Shared Drive (Team Drive)?

y) Yes
n) No (default)

如果您要挂载的就是团队盘,那么选择y,不是的话就选择n

此时配置就已经结束了,退出clone,开始挂载。

二、 挂载Google Drive

首先新建一个文件夹用于挂载:

mkdir /google

开始挂载:

rclone mount gdrive: /google --allow-other --allow-non-empty --vfs-cache-mode writes --daemon

其中gdrive是rclone配置时输入的配置名称,/google是挂载目录,–daemon是指后台运行。

此时可能会报错:

Fatal error: mount not ready

这是现在版本的报错不太完善,需要去掉 –daemon 才能看到报错

rclone mount gdrive: /google --allow-other --allow-non-empty --vfs-cache-mode writes

一般是因为缺少依赖导致的,我们选择安装

centos系使用:

yum install -y fuse fuse3

debian系使用:

apt install -y fuse fuse3

再次执行挂载命令,如果没有报错,就是挂载成功了。

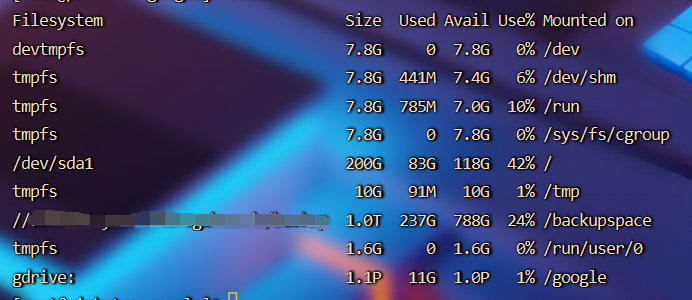

检查挂载:

df -h

应该看到:

挂载成功显示

可以看到/google已经成功挂载了

接下来进入/google进行一些简单的测试

cd /google
ls
mkdir test
rm -rf test

如果能够顺利执行,则说明挂载没有问题。

-=||=-收藏

评论

  1. 落痕
    1年前
    2022-7-27 22:59:14

    Failed to create file system for “Gd:/”: drive: failed when making oauth client: failed to create oauth client: empty token found – please run “rclone config reconnect Gd:”
    为什么挂载的时候会显示这个

    • 博主
      落痕
      1年前
      2022-8-04 22:02:05

      我没有遇到过这个问题,可以尝试检查一下API是否配置准确(包括申请的部分和rclone的填写),如果还有问题,可以尝试参考https://forum.rclone.org/t/failed-to-create-file-system-when-making-oauth-client/12324

  2. rotel
    1年前
    2022-9-02 12:20:08

    大佬,那一步在token在电脑上面操作,具体复制哪里!下载下来的文件里面有个终端打开无法输入,我是在文件夹下起得一个终端,复制rclone authorize “drive”那一行这里的全部复制吗,加前面的复制过去也不行,不复制过去也不行,麻烦大佬解答,万分感谢

    • 博主
      rotel
      1年前
      2022-9-04 10:43:36

      需要在https://rclone.org/downloads/中下载你本地操作系统的rclone,解压后应该能看见rclone.exe。在终端中进入此目录并输入复制的rclone authorize “drive”(是的只需要这一行,其他的不需要复制)
      感谢您的反馈,已在文章中进行了更详细的描述🙂

  3. xiaoli
    12月前
    2022-10-17 19:53:47

    感谢!成功了!

  4. xiaoli
    12月前
    2022-10-17 23:10:46

    重启怎么自动挂载呢,可以为我解答一下吗,谢谢了!

  5. 小巴
    10月前
    2022-12-10 17:55:41

    root@localhost:~# rclone mount gdrive: /google –allow-other –allow-non-empty –vfs-cache-mode writes –daemon
    2022/12/10 09:54:11 Failed to create file system for “gdrive:”: drive: failed when making oauth client: failed to create oauth client: invalid character ‘y’ looking for beginning of value
    没有成功,不知道怎么回事QAQ 难道是cofing.json弄错了?

    • 博主
      小巴
      9月前
      2022-12-28 8:10:34

      检查检查令牌、秘钥等输入是否正确吧

  6. tet
    7月前
    2023-2-17 18:25:57

    我加了一个/才成功的
    rclone mount gdrive:/ /google –allow-other –allow-non-empty –vfs-cache-mode writes –daemon

    • 博主
      tet
      7月前
      2023-2-20 9:46:59

      感谢反馈,我之前没遇到这个问题,可能是由于版本更新带来的变化吧

  7. tet
    7月前
    2023-2-17 18:31:19

    而且获取授权的code那一步在win的终端操作的开始需要保证终端也走代理
    powershell需要先输入代码:
    $Env:http_proxy=”http://127.0.0.1:<代理软件的端口>”;
    $Env:https_proxy=”http://127.0.0.1:<代理软件的端口>”;
    而且在复制的过程中 rclone authorize “drive” 后面还有一段字符也得复制过去

  8. 111
    7月前
    2023-2-22 13:34:38

    获取token总是time out

    • 博主
      111
      7月前
      2023-2-23 13:04:05

      检查你本机命令行是否也能正常走代理,能否连通Google

  9. 11
    7月前
    2023-3-17 16:42:06

    挂载的时候出现这种是因为什么呢??
    Fatal error: mount not ready

    • 博主
      11
      已编辑
      6月前
      2023-3-18 14:44:09

      新版的报错不太完善,可以去掉–deamon试试,这样才能看到报错。现在有可能是需要apt install fuse3 -y才能挂载

      • 11
        Pioneer
        6月前
        2023-3-19 15:25:47

        今天试了一把,加了apt install fuse3 -y就可以了

  10. test
    6月前
    2023-3-27 0:25:46

    不用自己的OAuth 2.0 客户端 ID,默认就行
    最大的难点就是cmd中要设置代理

  11. 牛啊!
    6月前
    2023-4-13 11:47:29

    Unable to locate package fuse3
    这个怎么解决

    • 博主
      牛啊!
      6月前
      2023-4-13 13:07:19

      apt update -y && apt install fuse3 -y 试试,如果不行的话,建议更新操作系统或去 https://pkgs.org/download/fuse3 看看

发送评论 编辑评论
